Description

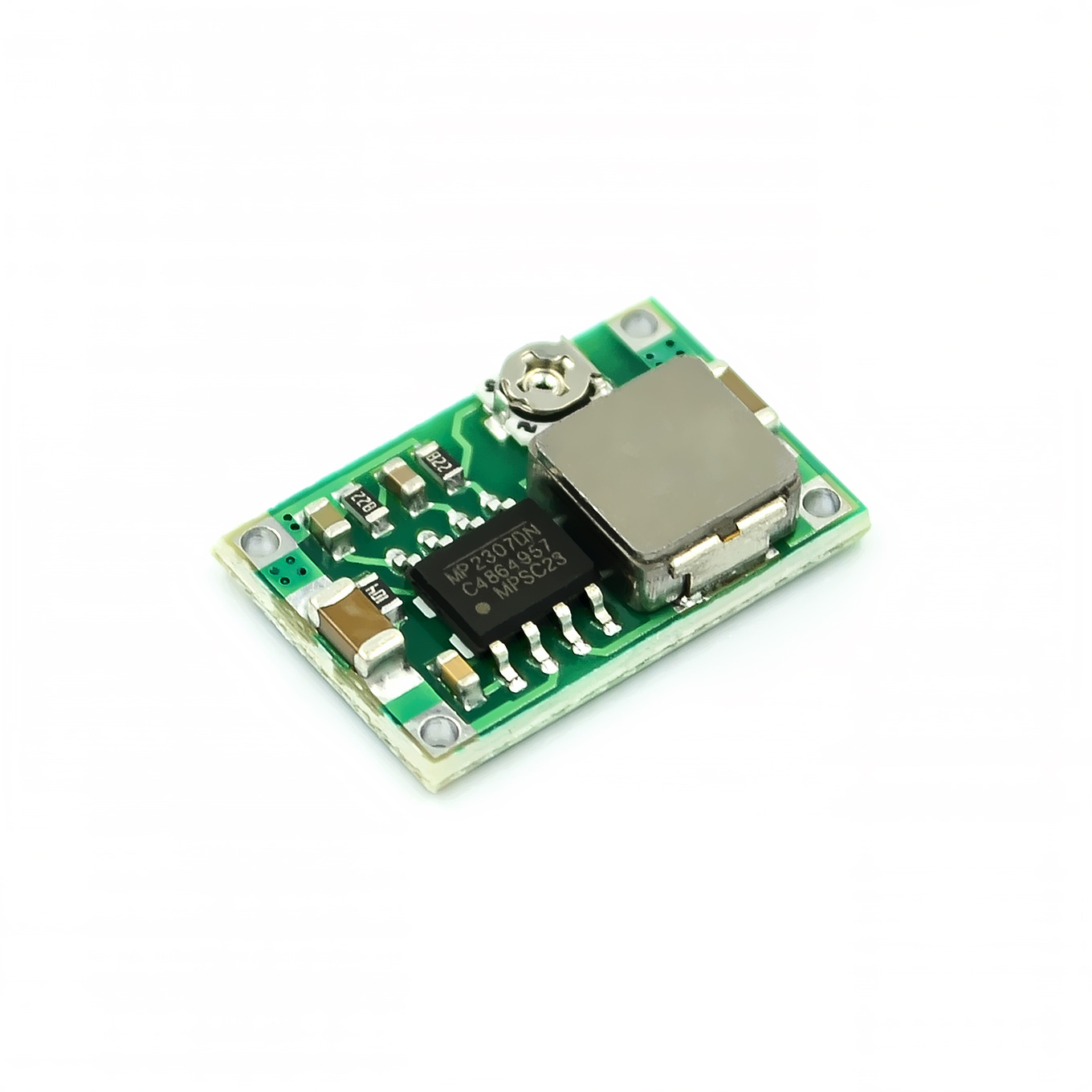

Model Name: Mini-360 (ultra small size DC-DC synchronous rectifier buck module
Module Properties: non-isolated buck
Rectification: synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output Current: lowering the value of 3A, long 1.8A
Conversion efficiency: 96% (maximum)
Switching Frequency: 340KHz
Output ripple: 30mV (no-load)
Load regulation: ±0.5%
Voltage regulation: ±2.5%
Working temperature: -40 Centigrade to +85 Centigrade

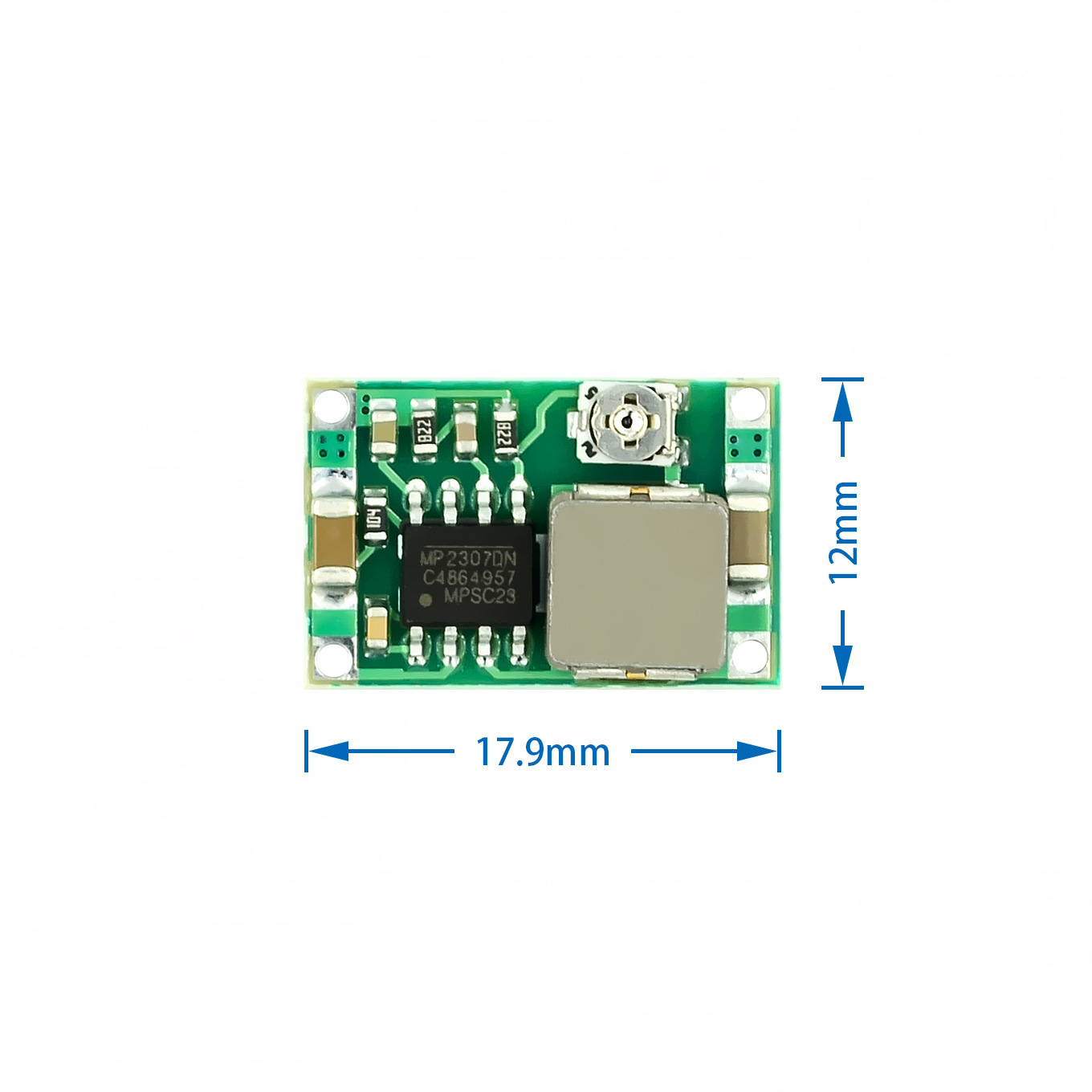

External dimensions: 17 * 11 * 3.8 (L * W * H) (mm)

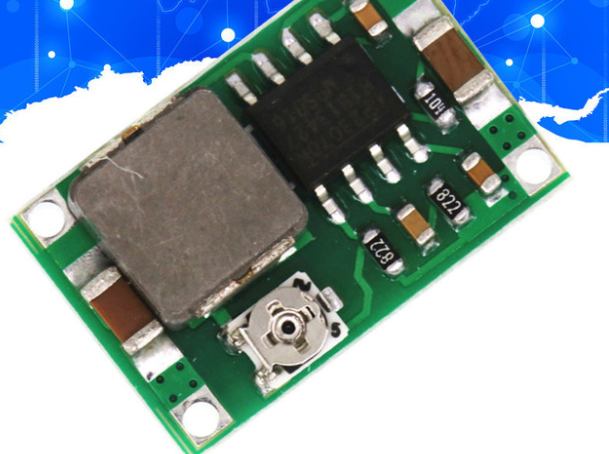

Features: Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
Package Choose：

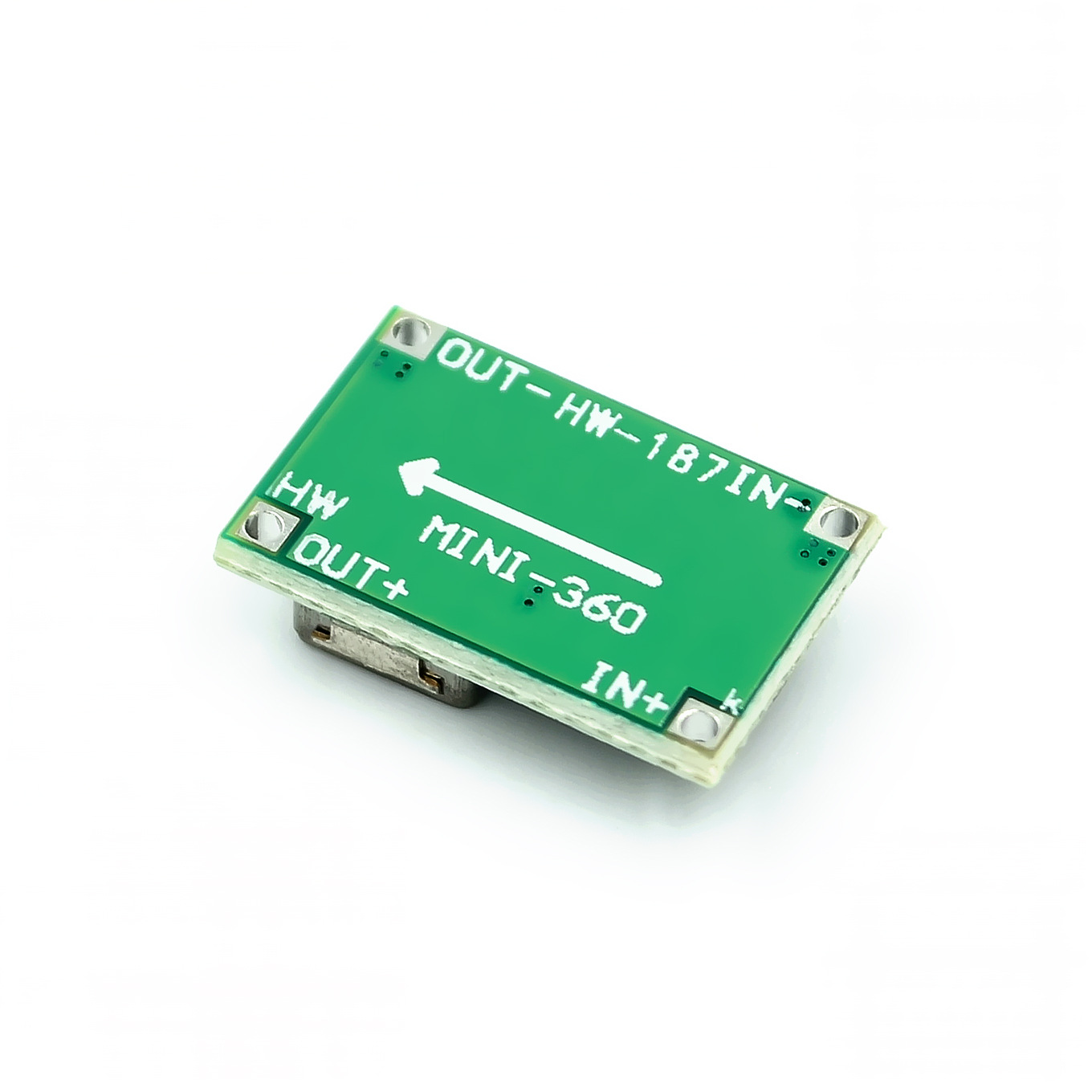

1 pcs Mini-360 DC-DC HM Buck Converter Step Down Power Supply Module
